The ultimate guide to shade sail sizes

Selecting the right shade sail size is essential to providing effective coverage while maintaining structural reliability and a clean, functional design. Larger spans, site constraints, and intended use all influence how a sail should be shaped and positioned.

With more than 25 years of experience delivering shade solutions across Australia, Greenline has developed a deep understanding of how to optimise space, materials, and engineering for each project.

This guide explains parts of our approach to shade sail sizing, including the maximum span achievable for a single sail, strategies for covering larger areas, and alternative fabric structures suitable for more complex or expansive sites.

First Things First: How Far Can Shade Structures Span?

The maximum clear span for a single shade sail is around 20 metres. This typically provides between 350 and 400 square metres of coverage, depending on the shape and layout. This size is ideal for large open spaces such as sports courts, assembly areas, or car parks that need effective UV protection and airflow without multiple supports cluttering the ground.

For spaces beyond 20 metres, we can connect multiple sails or combine different fabric structures to achieve full coverage. Our design and engineering team works with you to plan how each sail interacts with the site layout, ensuring maximum shade and visual appeal.

Greenline's Standard Sizes

Every Greenline shade sail is custom-designed for your project, so standard sizing takes a backseat to your vision. We'll create any configuration up to that 20-metre span, shaped and positioned exactly where you need it.

Most of our installations fall between 36 square metres (6 x 6m) and 144 square metres (12 x 12m). These sizes work beautifully for schools, parks, and commercial spaces, though your project might call for something entirely different, and that's exactly what we're here to deliver.

Covering Larger Areas

Larger shade projects require a more considered approach to design and engineering. As the span increases, so does the structural load, meaning everything from the steel posts to the fabric tension must be carefully planned.

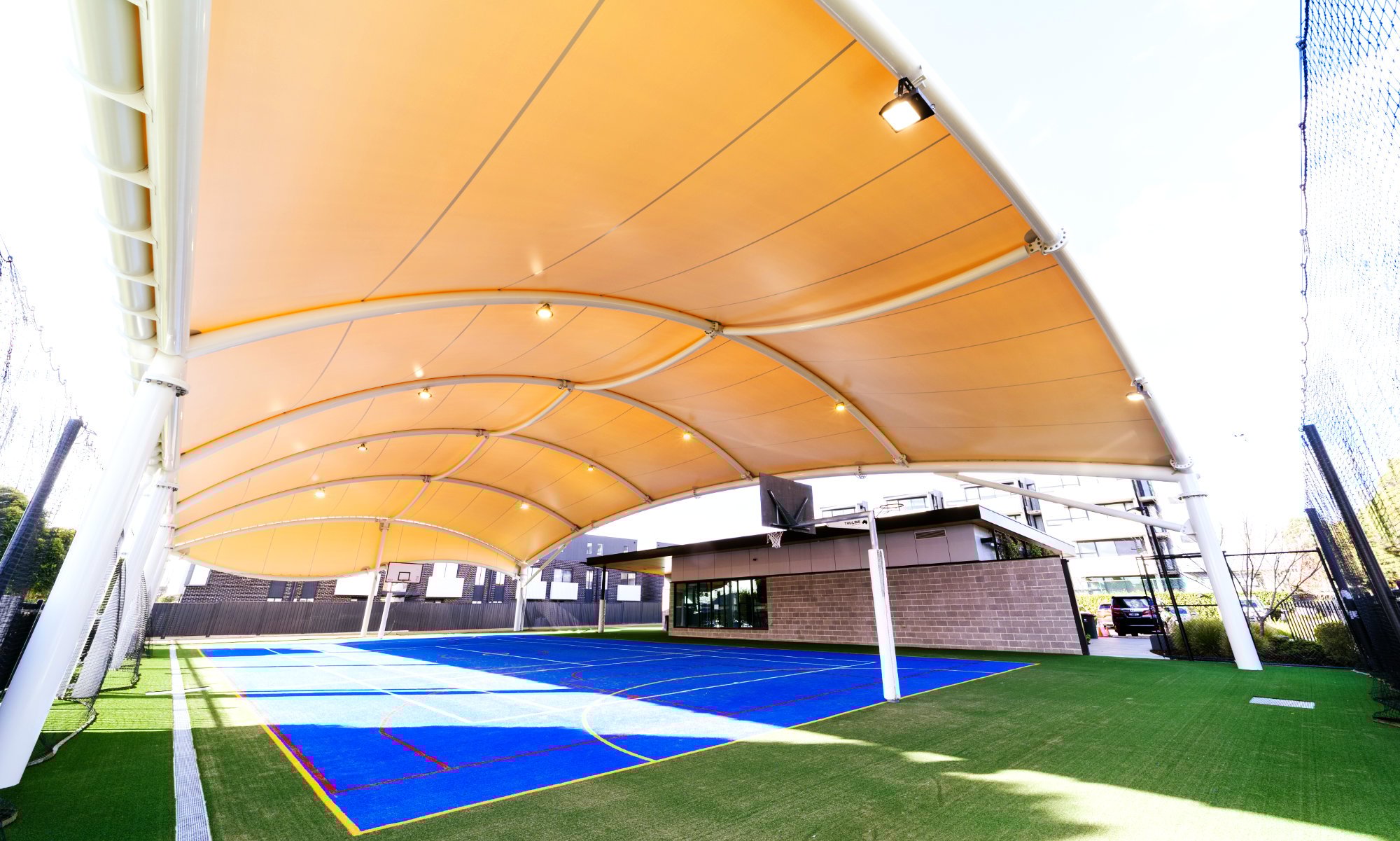

A large, covered sports court

We take these factors into account from the outset to ensure each installation remains safe, strong, and visually cohesive, no matter how big the space. There are several adjustments we can make to accommodate wider spans while staying compliant with engineering standards.

These include modifications to the supporting steelwork, the choice of fabric, and how the overall structure is tensioned and anchored, to name a few. Here are more details on everything that we factor in.

Wind and Load Engineering

As shade sails increase in size, they face higher wind loads that affect both the fabric and supporting structure. At Greenline, every large-scale project begins with a comprehensive wind and load analysis to ensure the structure performs safely under all expected conditions.

Our engineers assess how wind moves across the surface, how uplift forces act on the posts, and how tension is distributed throughout the fabric. This data informs critical design decisions such as post placement, connection points, and the degree of curvature required to maintain proper tension.

We use advanced 3D modelling tools and detailed engineering calculations to predict how each component will respond under load. Factors like sail height, orientation, and slope are all optimised to allow wind to pass efficiently across or around the structure, reducing pressure buildup.

Higher Quality Mesh

The fabric used in larger shade sails must be just as robust as the framework that supports it. As the span widens, the fabric experiences higher tension and greater exposure to wind, UV, and rain.

That’s why Greenline specifies premium-grade mesh or PVC fabrics for extensive installations, each designed for durability and dimensional stability. These materials feature enhanced UV protection, ensuring long-term colour retention even under harsh Australian sun.

Reinforcement is equally important. For wide-spanning sails, we use double-stitched fixing points at every corner and reinforced edge webbing to maintain even tension across the surface. This prevents sagging and reduces wear on the attachment points over time.

With these enhancements, our sails can comfortably achieve spans up to 20 metres while retaining their form and function for years of daily use.

Cable and Tensioning Systems

Maintaining even and consistent tension across a large shade sail is essential for both performance and appearance. We incorporate high-tensile stainless-steel cables or perimeter wire systems into the sail’s design to ensure the load is evenly distributed across all edges.

These cables prevent sagging, minimise fabric strain, and help the sail retain its sculpted form under varying weather conditions. Each cable is precisely tensioned during installation and adjusted to match the specific engineering requirements of the structure, allowing the fabric to flex safely.

To achieve this precision, we use high-end tensioning hardware such as turnbuckles, shackles, reinforced corner fittings, and more. These components allow for fine-tuned adjustments, ensuring the sail maintains optimal tension year after year.

Stainless-steel hardware is chosen for its durability and corrosion resistance, especially important in coastal or high-humidity environments. Together, these elements create a system that not only looks refined but also performs reliably, reducing long-term maintenance needs.

Drainage and Water Management

Effective water management is essential for large or low-pitch shade sails to prevent pooling and maintain long-term fabric performance. We carefully design each sail with strategically placed high points and precise fall angles to encourage natural runoff.

The tensioned fabric is angled so that rainwater flows off the surface rather than collecting in low spots, reducing the risk of sagging, fabric fatigue, or structural strain.

This approach protects the integrity of the sail and keeps the shaded area below dry and functional, ensuring your investment remains both practical and visually appealing for years to come.

Larger Steelwork

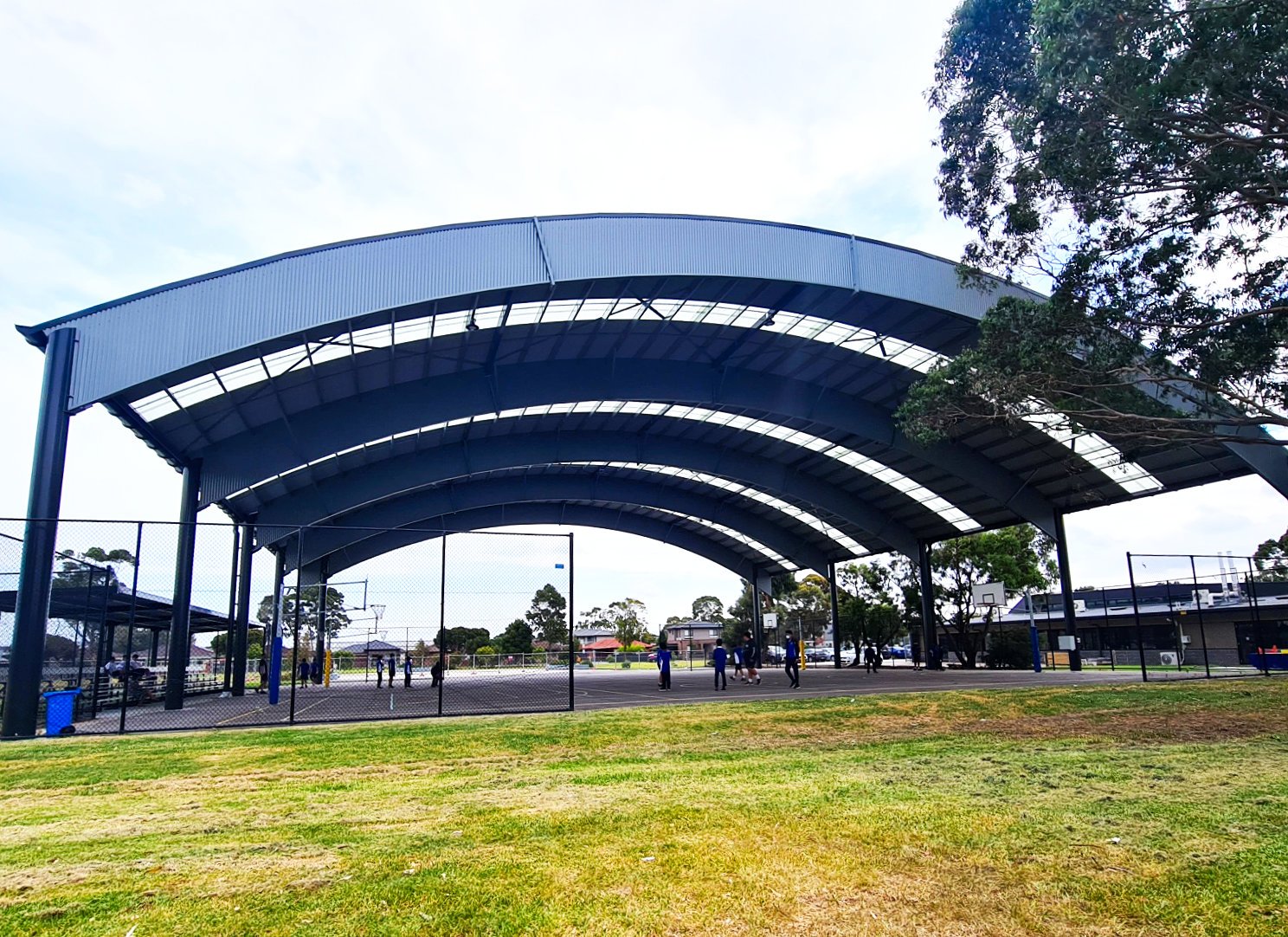

Large steelwork used in a shade structure

The foundation of any large-scale shade sail lies in the strength of its supporting framework. As the span and tension increase, standard steel components often need to be replaced with custom-fabricated alternatives.

While most structural steel is supplied in 12-metre lengths, projects that exceed this height or width require longer, thicker sections to safely handle the additional stress.

We work closely with engineers to determine the exact dimensions and specifications for each component, ensuring that the posts and connections are appropriately scaled for the sail’s size and load requirements.

The diameter and wall thickness of the steel posts also increase as the structure grows, creating a stable base that prevents flexing or movement under tension. Additionally, we only ever use high-grade Australian steel that meets rigorous safety standards.

This attention to detail ensures the steelwork supports the sail’s weight and contributes to the clean, professional finish our projects are known for.

Fabric Shape and Layout Optimization

As shade sails increase in size, fabric geometry becomes one of the most important factors in achieving consistent tension and long-term durability. Larger sails are more susceptible to fabric movement and load imbalance, so careful shaping is essential.

We design each sail with a specific degree of curvature, known as hypar (hyperbolic paraboloid), to create the right balance between tension and visual form.

This curvature allows the sail to shed wind efficiently and maintain tautness across the surface, preventing sagging or water pooling. The larger the span, the more pronounced these curves and edge shapes need to be to ensure the fabric performs as intended.

Our design team uses advanced software to model the exact fabric layout before cutting and fabrication begin. Every panel is patterned to match the tension lines, reducing strain at high-load areas and ensuring a smooth, even finish once installed.

Multiple Sail Integration

Ultimately, the best way to cover large spans with commercial shade sails is to install multiple sails onto the site, reducing the need for more complex engineering and material adjustments.

There are several ways that we can design a multiple sail structure so that the engineering and use of materials are at maximum efficiency.

One technique is using kiss points, where two sails meet closely along the edges to maximise shade and reduce gaps. This creates a sleek, continuous canopy effect, ideal for spaces like playgrounds and outdoor eating areas.

Shared posts are another effective solution for multi-sail projects. By attaching two or more sails to the same structural post, we can minimise the number of supports needed on-site, reducing both cost and visual clutter.

This setup works well for long or irregular spaces, such as walkways or car park rows, where consistent shading is essential.

Post Footings and Foundations

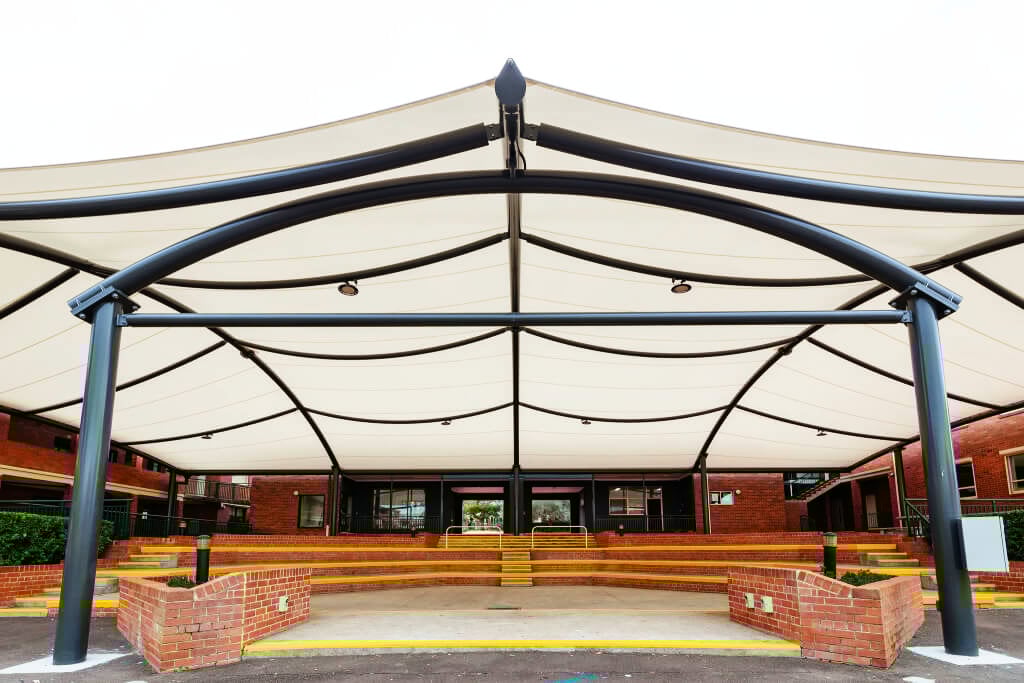

Covered outdoor learning area with solid footings

The strength of any shade structure begins below the surface. For larger spans, the forces acting on each post are significantly greater, which means the footings must be designed to counteract both uplift and lateral pressure caused by wind loads.

At Greenline, we engineer deeper and wider concrete footings to anchor the posts securely, ensuring long-term stability even under extreme conditions. Each footing is custom-designed based on factors such as post height, sail tension, and site exposure, so no two installations are ever the same.

This approach helps maintain the structure’s balance while preventing ground movement or post shifting over time. To achieve the right foundation design, our team collaborates closely with structural engineers who assess the soil conditions and local wind ratings for each project site.

The density and composition of the soil, whether sandy, clay-based, or compacted, play a major role in determining the required footing dimensions and reinforcement.

We also account for regional wind categories to ensure compliance and safety. This thorough groundwork ensures that every Greenline shade structure is built on a foundation as strong and reliable as the steel and fabric above it.

Alternative Structures for Large Spaces

Beyond traditional shade sails, specialized structures tackle unique spacing challenges and aesthetic preferences. Each design brings distinct advantages for specific applications and environments.

These alternatives expand your options when conventional sails don't quite fit the brief. From educational campuses to sports facilities, there's a shade solution engineered for your exact requirements.

Star Structures

A single central pole supports radiating fabric panels in these striking designs, leaving the ground completely clear around the perimeter. This configuration works beautifully in pedestrian zones where post-free space matters most.

Star structures create visual focal points while solving practical shade needs. The minimal footprint makes them perfect for plazas, entry areas, and anywhere that benefits from unobstructed movement.

Cantilever Design

Posts positioned on one side only create an overhanging shade zone with exceptional ground clearance. This versatile approach scales from intimate spaces to substantial coverage areas while maintaining clean, uncluttered aesthetics.

Cantilevers excel where you want to preserve sightlines or keep one side of a space completely open. The dramatic cantilevered reach makes a strong architectural statement while delivering functional shade.

Conic Design

These umbrella-inspired structures adapt to virtually any size requirement without technical limitations. Smaller installations provide focused coverage, while multi-peak "circus tent" configurations shade massive areas cost-effectively.

Conic designs bring sculptural elegance to functional shade requirements. The flexible sizing means you're never constrained by spatial limitations—only by your vision for the space.

Barrel Vaults

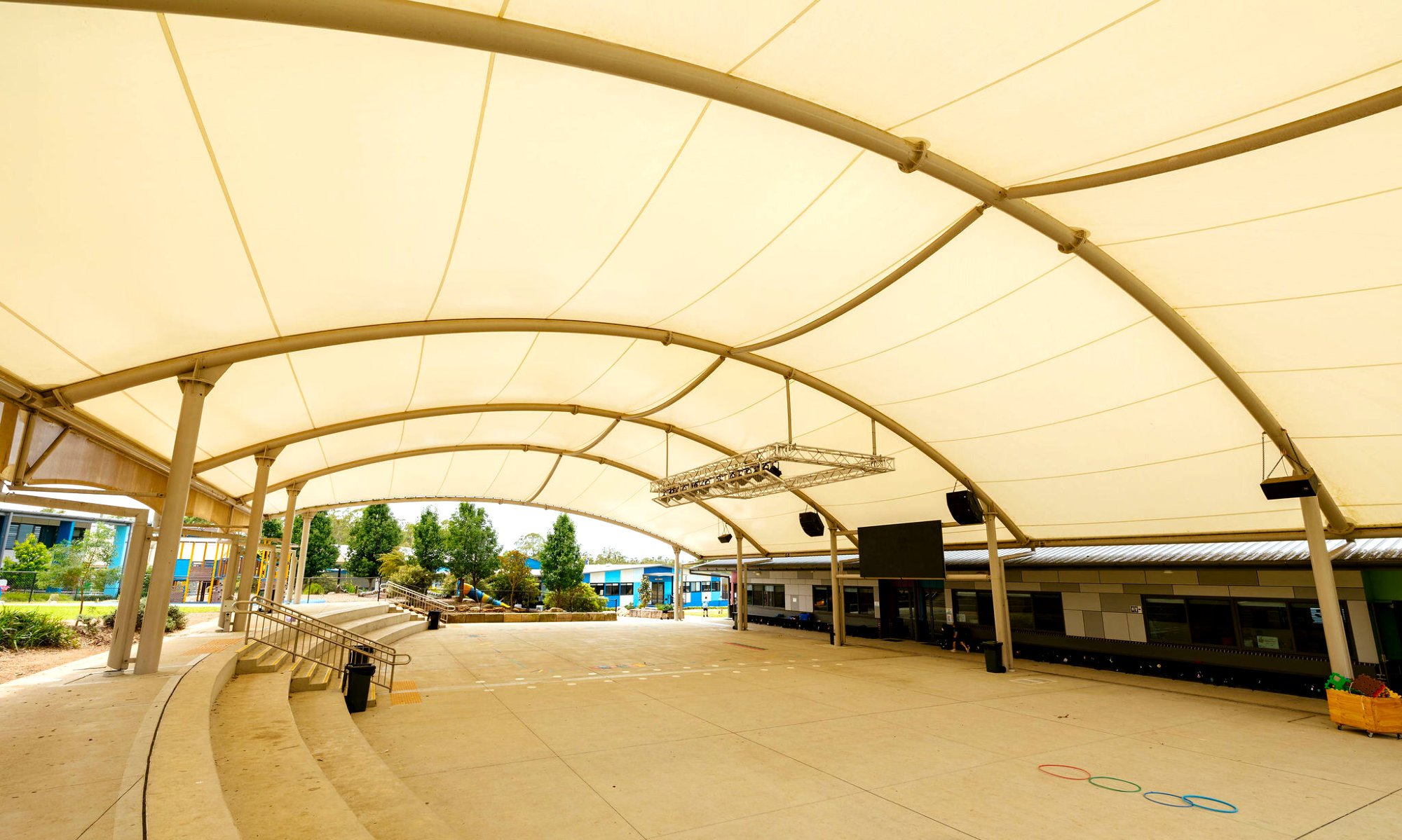

Large barrel vault shade structure

High-arched steel frames support PVC membranes in these dramatic structures, ideal for sports courts and large recreational areas. The curved design sheds water effectively while maximizing clearance height throughout the covered space.

Barrel vaults deliver impressive coverage at a compelling price point. They're particularly effective when you need to protect activities requiring significant overhead clearance without obstructing sightlines.

Frequently Asked Questions

Whether you’re planning to cover a small outdoor seating area, a playground, or a large car park, understanding the limits, requirements, and flexibility of shade sails is essential.

Here are some of the most common questions we receive about shade sails, designed to help you understand their capabilities, maintenance, and options for larger or more complex installations.

What's the Largest I Can Go?

A single Greenline shade sail can span up to 20 metres, offering approximately 400 square metres of coverage. For areas that exceed this, we recommend combining multiple sails or exploring alternative fabric structures such as barrel vaults or cantilever designs.

Our team can assess your space and provide a custom layout that maximises shade coverage while maintaining structural soundness and a clean, professional appearance.

Can You Leave Sails up All Year?

Yes. Greenline shade sails are engineered for permanent, year-round installation, designed to withstand harsh Australian sun, wind, and rain.

Unlike some DIY or lower-quality products that may require seasonal removal, our sails are built to remain safely in place without compromising durability or shape. Regular inspections and basic maintenance ensure the sail continues to perform optimally over many years.

Are They Waterproof?

Standard shade cloth fabrics provide excellent UV protection and airflow but are not waterproof. For sites that require complete rain coverage, Greenline offers waterproof shade sails equipped with PVC fabrics that combine durability, weather resistance, and strength.

These options allow the sail to protect users from both sun and rain, while maintaining the tension and aesthetic quality that our structures are known for.
